1001 Shadows Student [Perpetual]

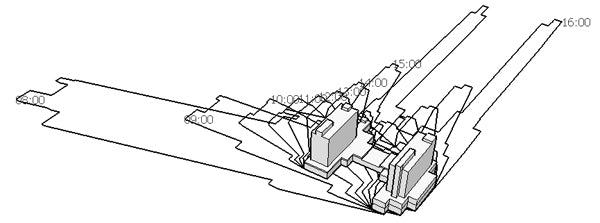

1001 Shadows is a plugin for SketchUp that generates a series of shadow outlines from a start time to end time with user defined intervals.
Simple operation – set the latitude, start-end time, interval and generate the shadow profiles
Cross platform compatibility – Works in Sketchup Pro, as well as Windows and Mac
Capture shadows for export – Shadow profiles are generated in edges or faces(solid shadows) that can be exported to other CAD programs.
1001 Shadows for SketchUp features
-
1001 Shadows allows architects and planners to analyse effect of light and shadow from a potential new development.
-

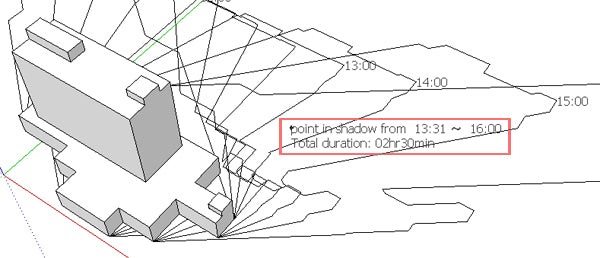

Point shadow duration – The duration where a certain point fall under shadow can be analysed.
-

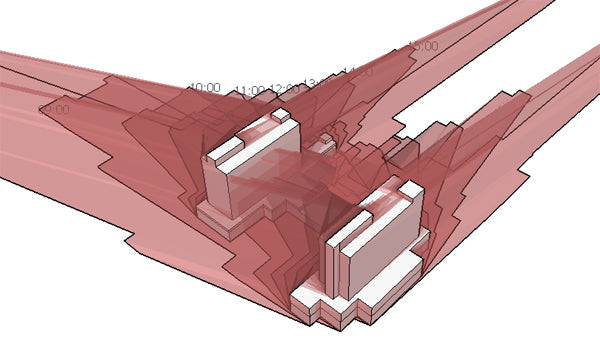

Solid shadows generation – ‘Freeze time’ by generating solid shadows for selected durations. This is ideal for visualising the effect of shadows on surfaces through time.
-

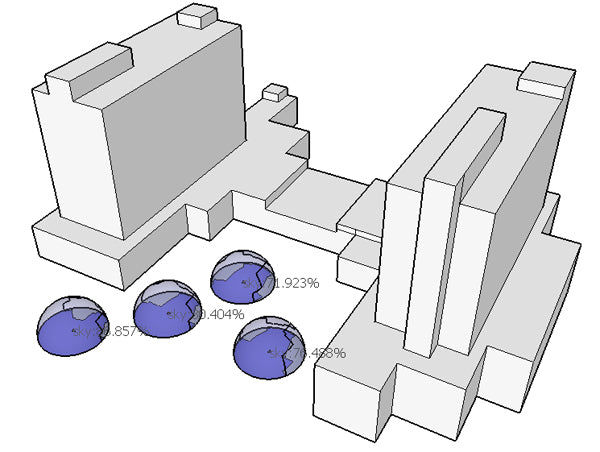

Sky exposure – Pick a point to analyse the extent of exposure to open sky.
-

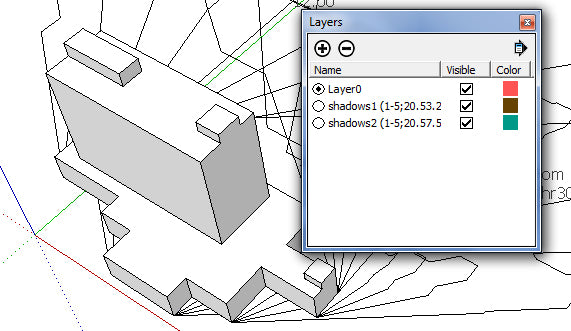

Shadow profiles of each session are grouped separately by time and placed on a common layer
-

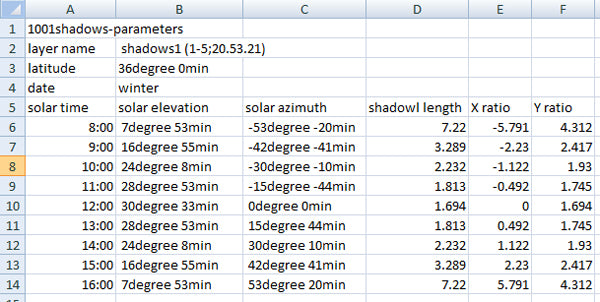

Table of shadow angle projection are listed in a .csv file. The layer name is recorded on the data sheet to facilitate cross referencing with the SKP file.
