BitBox

1001 Shadows Educator [Perpetual]

1001 Shadows Educator [Perpetual]

Regular price £15.00 GBP
Regular price £15.00 GBP Sale price £15.00 GBP
SALE Sold out
Shipping calculated at checkout.

1001 Shadows Educator [Perpetual]

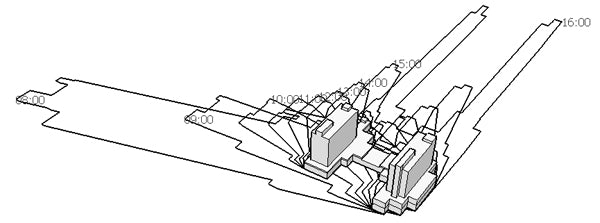

1001 Shadows is a plugin for SketchUp that generates a series of shadow outlines from a start time to end time with user defined intervals.

Simple operation – set the latitude, start-end time, interval and generate the shadow profiles

Cross platform compatibility – Works in Sketchup Pro, as well as Windows and Mac

Capture shadows for export – Shadow profiles are generated in edges or faces(solid shadows) that can be exported to other CAD programs.

1001 Shadows for SketchUp features

  • 1001 Shadows allows architects and planners to analyse effect of light and shadow from a potential new development.

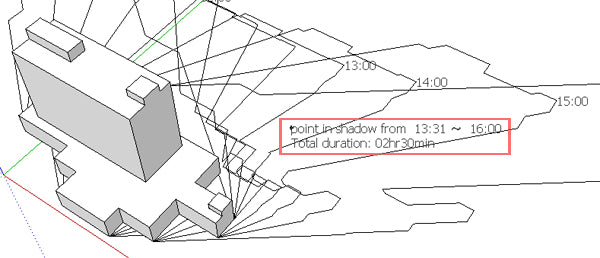

  • Point shadow duration – The duration where a certain point fall under shadow can be analysed.

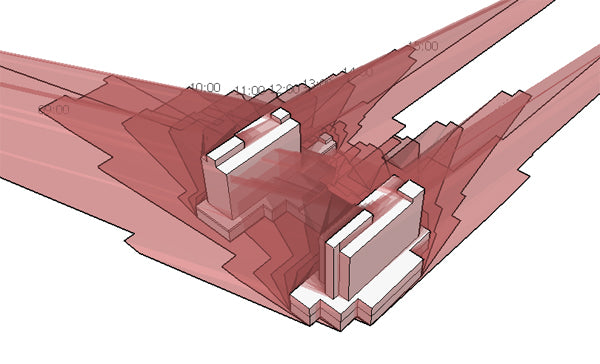

  • Solid shadows generation – ‘Freeze time’ by generating solid shadows for selected durations. This is ideal for visualising the effect of shadows on surfaces through time.

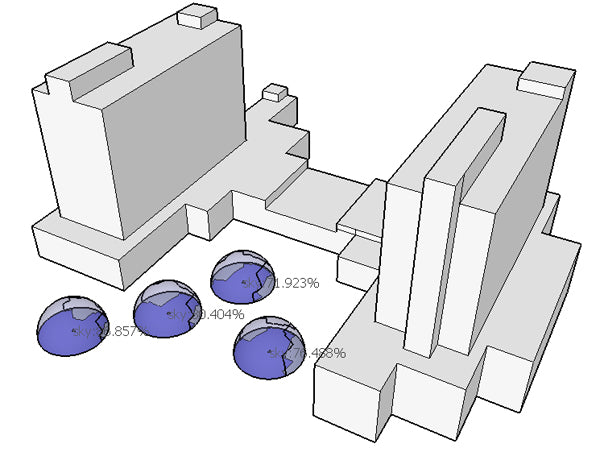

  • Sky exposure – Pick a point to analyse the extent of exposure to open sky.

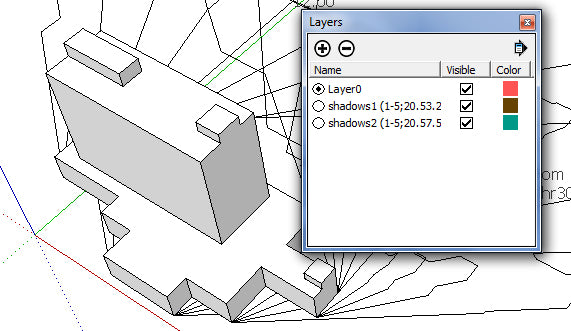

  • Shadow profiles of each session are grouped separately by time and placed on a common layer

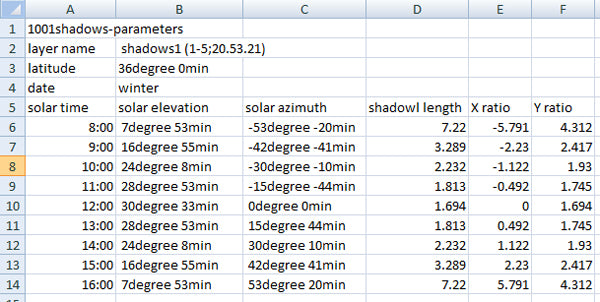

  • Table of shadow angle projection are listed in a .csv file. The layer name is recorded on the data sheet to facilitate cross referencing with the SKP file.
